SavaPage uses XML-RPC, JSON-RPC and RESTful API for its public Web Services. Both protocols are Open Standard, lightweight and have support for all major programming and scripting languages.
Note
The range of Web Services will grow upon request. Please tell us if you need extra methods.
The secure endpoint is:
https://savapage:8632/xmlrpc/v1
With this method a Trusted Third Party (TTP) acquires a one-time token for Web App user authentication.
The requesting User Name and returned Token must be offered to the Web App
by hidden HTTP POST input names auth_user and
auth_token. The Web App decrypts the token and honours the
authentication request if the offered and encrypted Users match and the
token is not expired.
| Name | Type | Description | |
|---|---|---|---|
|
Parameters | apikey |
string |
The TTP API key as set in the
|
| username |
string |
The User Name to authenticate. See Section 3.1, “Login”. User Alias mapping is applied. | |
|
Returns | token |
string |
The one-time authentication token holding the encrypted User Name and token creation time. The expiration criterion in milliseconds is set in
the |
Table C.1. XML-RPC method: onetime-auth.createToken
Note
This method is used by moodle-block_savapage.
Important
TTP Web App Login authentication must be enabled by setting the
web-login.ttp.enable configuration property to
Y.
The secure endpoint is:
https://savapage:8632/jsonrpc/v1
The following configuration properties apply:
| Configuration property | Description |
|---|---|
|
api.jsonrpc.secret-key |
The secret key to be passed as
|
|
api.jsonrpc.ext.ip-addresses-allowed | A CIDR Set of allowed client IPv4 and/or IPv6 addresses. When void access is denied for all clients. |
Table C.2. JSON-RPC Configuration Properties
See Section 4.11.14, “Config Editor” on how to set these items.

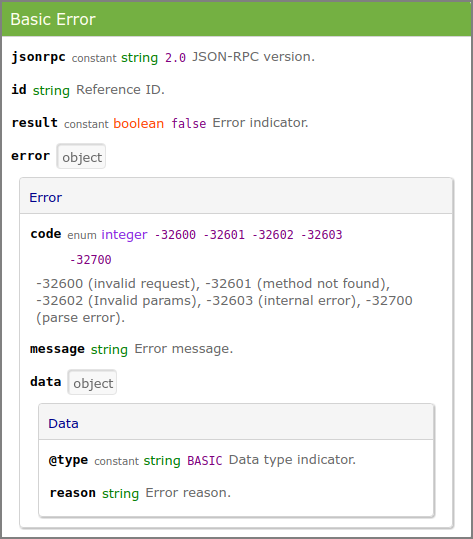

The sections below discuss the individual methods. All methods default to the same response layout in case of an error.

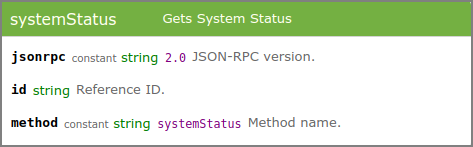

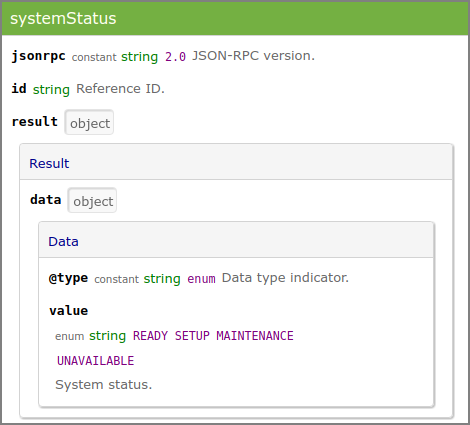

This method returns the system status as enum value.
READY indicates the system is ready to use and users
have access to the Web App. All other values indicate that user access is
denied, because: system
SETUP is needed, MAINTENANCE is in
progress, or the system is temporarily UNAVAILABLE due to
running batch jobs (database backup, user synchronization, database cleanup).
Note
Although the system can have multiple "deny status" at the same
time, the single most important status is returned, in the order
SETUP, MAINTENANCE,
UNAVAILABLE.
# sample request
curl --request POST --header "X-Auth-Key: 7961b5ec-bee4-11e7-8731-406186940c49" \
--data '{"jsonrpc":"2.0","id":"reference","method":"systemStatus"}' \
https://savapage:8632/jsonrpc/v1
# sample response
{
"jsonrpc" : "2.0",
"id" : "reference",
"result" : {
"data" : {
"@type" : "enum",
"value" : "READY"
}
}
}

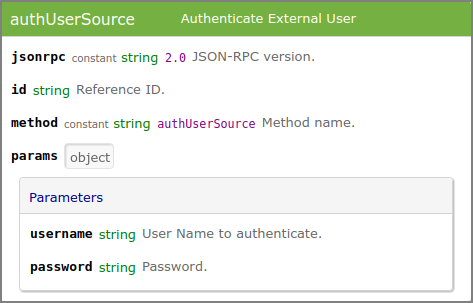

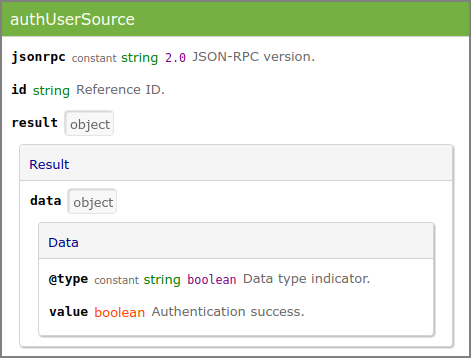

This method authenticates an external user against the configured User Source.
# sample request
curl --request POST --header "X-Auth-Key: 7961b5ec-bee4-11e7-8731-406186940c49" \
--data '{"jsonrpc":"2.0","id":"reference","method":"authUserSource", \
"params":{"username":"john","password":"AzFi7I"}}'
https://savapage:8632/jsonrpc/v1
# sample response
{
"jsonrpc" : "2.0",
"id" : "reference",
"result" : {
"data" : {
"@type" : "boolean",
"value" : true
}
}
}
# sample error
{
"jsonrpc" : "2.0",
"id" : "reference",
"result" : false,
"error" : {
"code" : -32603,
"message" : "ldapserver:636 [No route to host (Host unreachable)]",
"data" : {
"@type" : "BASIC",
"reason" : "ldapserver:636"
}
}
}
Preview
RESTful Web Services is a Feature Preview that is partly operational and impermanent. The preview is offered to provoke feedback based on real world use. Please tell us your requirements.
The secure endpoint is:
https://savapage:8632/restful/v1
Services are described with curl examples.
curl -k -X GET "https://savapage:8632/restful/v1/system/version" # sample response SavaPage 1.2.0-rc (Build 20200121)
curl -k -X GET \
"https://savapage.example.com/restful/v1/tests/http/request"
# sample response
{
"remoteAddr" : "[2021:661:4cc6:1:5561:96ff:ca11:d4a]",
"remoteHost" : "[2021:661:4cc6:1:5561:96ff:ca11:d4a]",
"remotePort" : 53840,
"localAddr" : "127.0.0.1",
"serverName" : "savapage.example.com",
"serverPort" : 443,
"headers" : {
"Accept" : "*/*",
"User-Agent" : "curl/7.47.0",
"X-Forwarded-Proto" : "https",
"X-Forwarded-Host" : "savapage.example.com",
"Connection" : "keep-alive",
"X-Forwarded-For" : "2021:661:4cc6:1:5561:96ff:ca11:d4a",
"Host" : "savapage.example.com",
"X-Forwarded-Server" : "savapage.example.com"
}
}
Access to Admin Services is controlled by Basic HTTP Authentication.
| Configuration property | Description |
|---|---|
|
api.restful.auth.username |
Basic Authentication Username. |
|
api.restful.auth.password |
Basic Authentication Password. |
|
api.restful.ip-addresses-allowed |
A CIDR Set of allowed client IPv4 and/or IPv6 addresses. When void access is allowed for all clients. |
Table C.3. RESTful Admin Services Configuration Properties
curl -k -u admin:password -X POST \
"https://savapage:8632/restful/v1/tests/echo" \
-H "Content-Type:text/plain" -d "Hello World!"
# response
Hello World!
# GET JSON info of first 5 documents sorted by creation datetime descending
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents?sort=-created"
# ... sorted ascending
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents?sort=+created"
# GET JSON info of first page chunk of 2 proxy printed documents
# type = all (default) | in | out | pdf | print | ticket
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents?sort=-created&type=print&limit=2&page=0"
# sample response
[ {
"id" : 6263,
"ext_id" : "",
"type" : "print",
"title" : "Document A",
"created" : "2019-09-13T09:18:38+0200",
"store" : false
}, {
"id" : 6258,
"ext_id" : "c5a9dd70e931",
"type" : "print",
"title" : "Document B",
"created" : "2019-09-12T09:49:48+0200",
"store" : false
} ]
# GET JSON info of document id 6272
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents/6272"
# sample response
{
"id" : 6272,
"ext_id" : "d2a3a71c11e9",
"type" : "print",
"title" : "Invoice 20190248",
"created" : "2019-09-16T12:29:15+0200",
"store" : true
}
# GET JSON info of document with ext_id d2a3a71c11e9
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents/ext_id=d2a3a71c11e9"
# GET stored PDF document 6272
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents/6272/pdf" > 6272.pdf
# GET stored PDF document with ext_id d2a3a71c11e9
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/documents/ext_id=d2a3a71c11e9/pdf" \
> d2a3a71c11e9.pdf
# GET JSON info of account balance
# type = USER | GROUP | SHARED
curl -k -u admin:password -X GET \
"https://savapage:8632/restful/v1/financial/account/balance?type=USER&name=rijk"
# sample response
{
"succes" : true,
"result" : "9.260000"
}
# sample response
{
"succes" : false,
"error" : "error message"
}
# Sets or adjusts account balance of an account.
#
# URL parameters (by example):
#
# Mandatory :
#
# type=USER : USER | GROUP | SHARED
# name=rijk : identifying name of account
# amount=2.50 : can be negative, like -2.50
#
# Optional:
#
# details=my%20text : transaction details "my text"
# adjust=true : 'true' creates a transaction to adjust the balance with amount
# (a negative amount reduces the balance), 'false' (default)
# creates a transaction to set balance to amount
curl -k -u admin:password -X POST \
"https://savapage:8632/restful/v1/financial/account/balance?type=USER&name=rijk&amount=2.50"
# sample response
{
"succes" : true
"result" : "2.50" # resulting balance
}
# sample response
{
"succes" : false,
"error" : "error message"
}See Chapter 12, SavaPage Financial.
Note
The value of URL parameter details is
visible in the transaction logs. See Section 3.8.2, “Transactions” and Section 4.6.1, “Account List”.
# POST selection to download Account Transactions of user "rijk"
curl -k -u admin:password -X POST \
"https://savapage:8632/restful/v1/reports/accounttrx" \
-H "Content-Type: application/json" \
-d '{"select":{"account_type":"USER","account_name":"rijk"}}' > AccountTrxList.csv
The POSTed data is a JSON string. Full # annotated example:
{
"select" : {
"account_type" : "USER", # USER | GROUP | SHARED
"account_name" : "rijk", # optional for USER (all users)
# mandatory for GROUP | SHARED
"text" : null, # (optional) transaction comment snippet
"trx_type" : "PRINT_OUT", # (optional )
# ADJUST | DEPOSIT | GATEWAY | INITIAL |
# PDF_OUT | PRINT_IN | PRINT_OUT |
# PURCHASE | TRANSFER | VOUCHER
"date_from" : { # (optional) Sun Jan 01 00:00:00 CET 2023
"ccyy" : 2023,
"mm" : 1,
"dd" : 1,
"zzz" : "+01"
},
"date_to" : { # (optional) Thu Jun 01 00:00:00 CEST 2023
"ccyy" : 2023,
"mm" : 6,
"dd" : 1,
"zzz" : "+02"
}
},
"sort" : { # (optional)
"field" : "TRX_DATE", # TRX_DATE (default) | TRX_TYPE
"ascending" : true # true (default)| false
},
"media_type" : "CSV" # CSV (default) | PDF
}
Note
The output of this service is identical to the PDF and CSV reports from Section 3.8.2, “Transactions”.
Access to User Services is controlled by User ID and UUID.
# Print file "lorem-ipsum.txt" to SavaPage as user "janet" with UUID credentials
curl -v -k -u janet:97008e2c-d8b2-11e9-aa13-406186940c49 \
-H "Content-Type: multipart/form-data" -H "Accept: application/json" \
-F "file=@lorem-ipsum.txt" \
https://savapage:8632/restful/v1/documents/print
You can add a selection of IPP options just like they would be distilled from a driver printed job. See Section 14.2.1, “IPP Options from PostScript”.
# Add IPP options in JSON format
-F "file=@lorem-ipsum.txt" \
-F 'ipp_options={"copies":"2","print-color-mode":"monochrome","sides":"one-sided"}'
Important
A RESTful Print maps to the reserved Queue
/webservice by default.
An alternative non-reserved
Queue can be specified by adding an extra -F
parameter, like this:
# Print two collated copies to alternative queue "test"
-F "file=@lorem-ipsum.txt" -F "queue=test"
-F 'ipp_options={"copies":"2","sheet-collate":"collated"}'
If IPP
Routing is enabled for the alternative Queue, the
RESTful ipp_options have priority over and
are merged with the IPP Routing options.
To exclusively accept prints from specific IP addresses see Section 4.7.2, “Edit Queue”.
Note
RESTful Print is used by the SavaPage Android Print App.
# GET JSON balance of user account "janet"
curl -k -u janet:97008e2c-d8b2-11e9-aa13-406186940c49 -X GET \
"https://savapage:8632/restful/v1/financial/balance"
# sample response
{
"succes" : true,
"result" : "5.350000"
}
# sample response
{
"succes" : false,
"error" : "error message"
}
# Transfers balance amount from user "janet" to "rijk"
curl -k -u janet:97008e2c-d8b2-11e9-aa13-406186940c49 -X POST \
"https://savapage:8632/restful/v1/financial/transfer?name=rijk&amount=15.00"
# sample response
{
"succes" : true
}
# sample response
{
"succes" : false,
"error" : "error message"
}
